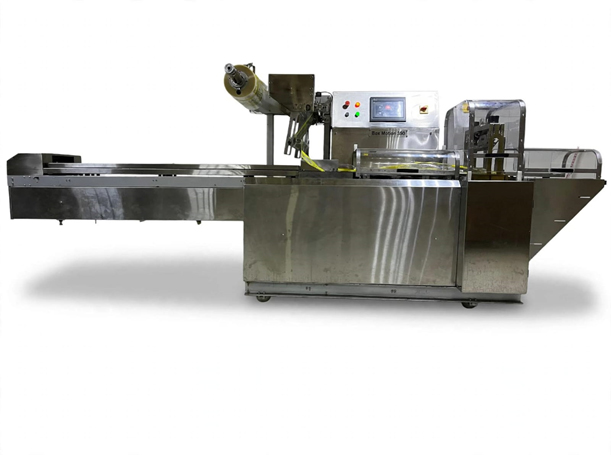

Box Motion Flow Wrap Machine Model Box Motion – 300

Box Motion – 300 or Orbit Flow – 300 is standard semi-automatic three-axis servo system controlled horizontal Flow Wrap Packing Machine which wraps trays or any solid shape products with three side air tight sealing from a roll of good barrier heat sealable wrapping material.

  • Its D- motion sealing arrangement seals each and every pack perfectly even with thicker films (more than 50 microns).This machine can be provided with Modified Atmosphere Packing with Nitrogen Gas Flush..
  • Feeding of product in this machine is manual. Automatic feeding is optional.
  • Gas flush is also possible in this machine as an optional attachment to enhance shelf life of packed product.
  • This Machine is fitted with HMI (Human Machine Interface) Touch Screen which displays machine operations & recall recipe at the time of change over
  • This machine is very useful for quick change-over and to pack range of (from very thin to extra thick or high)products which are almost impossible to pack on conventional Flow Wrappers.

This is a multi – axis controlled machine which uses 5 or more servo motors depending upon nature of product and speed of packing.

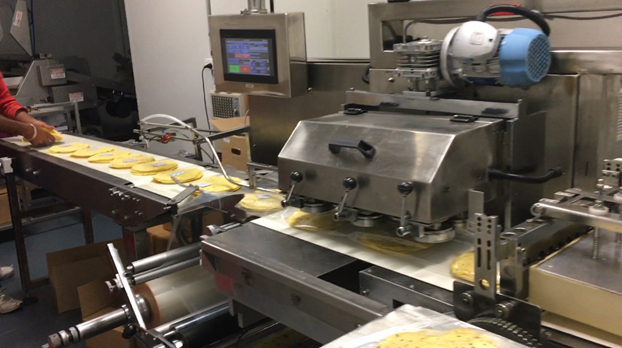

Invert Orbit Flow – 300

Invert Orbit Flow 300 is standard semi-automatic with three-axis servo system controlled horizontal Inverted Flow Wrap Packing Machine which wraps trays or any solid shape products with three side air tight sealing from a roll of good barrier heat sealable wrapping material.

  • Film Roll is mounted at bottom side of machine so this machine is also known as bottom feed machine.
  • Its D- motion sealing arrangement seals each and every pack perfectly even with thicker films (more than 50 microns).This machine can be provided with Modified Atmosphere Packing with Nitrogen Gas Flush..
  • Feeding of product in this machine is Automatic .
  • Gas flush is also possible in this machine as an optional attachment to enhance life of packed product.
  • This Machine is fitted with HMI (Human Machine Interface) Touch Screen which displays machine operations & recall recipe at the time of change over
  • This machine is very useful for quick change-over and to pack range of (from very thin to extra thick or high) products which are almost impossible to pack on conventional Flow Wrappers.
  • This machine is perfectly suitable for bakery & dairy products where each and every packet is required to be air tight sealed and gas filled.
  • Extra wrapper feed rubber roller is provided other than fin wheels for accurate feeding of wrapper for each and every bag.
  • Maximum Speed of machine is 50 cycles per minute
  • This is the best machine for quite a wide range of products. Maximum width of film can used on this machine is 700 mm.

Minimum width of wrapper   = 100mm

Maximum width of wrapper   = 700mm

  • Product sizes which can be packed on this machine are as follows:

Length of product  :            Min = 50mm     max= 400mm

Width of product    :            Min = 25mm      max=300mm

Height of product   :            Min = 5mm        max=100mm

This machine can pack more than above limits with some modifications which is subject to Advance & Auto Pack System’s engineering department approval.
